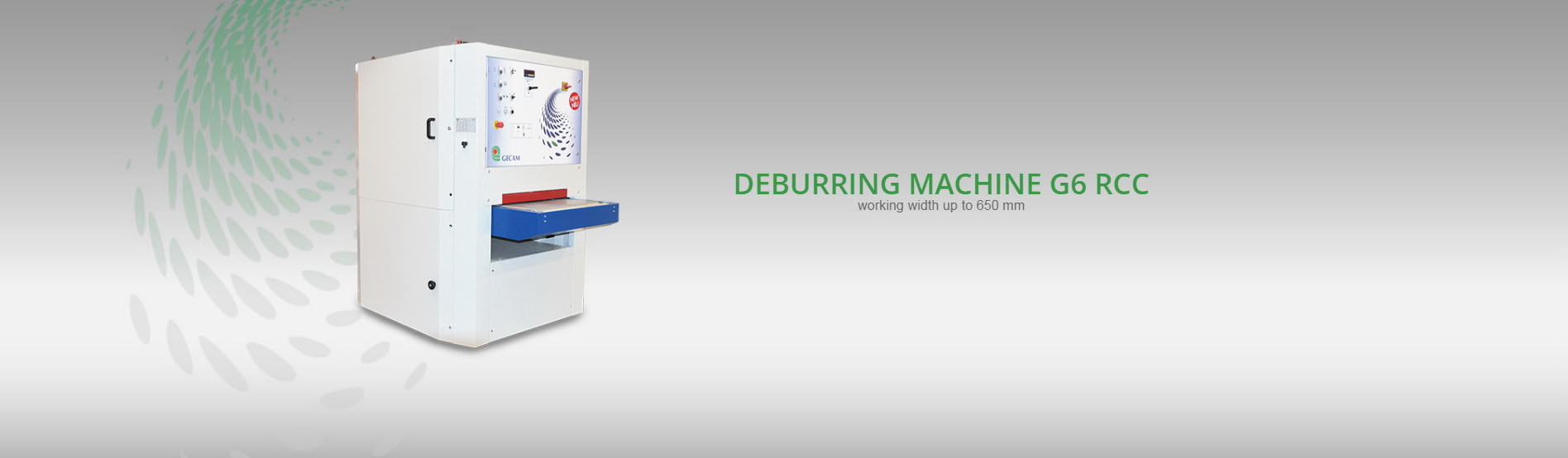

Deburring machine GE65 RCC

The abrasive belt deburring machine for metal surface with working width up to 650 mm and thickness up to 160 mm.

Equipped with two working units for surface deburring and rounding edges.

FEATURES

Working width Abrasive belt size Working thickness min/max Maximum weight
mm 650 mm 670 x 1900 mm 0,5 – 160 1400 kg
Overall dimensions L x D x H Air sucked volume
mm 1435 x 2000 x 2025 m³/h 2.000

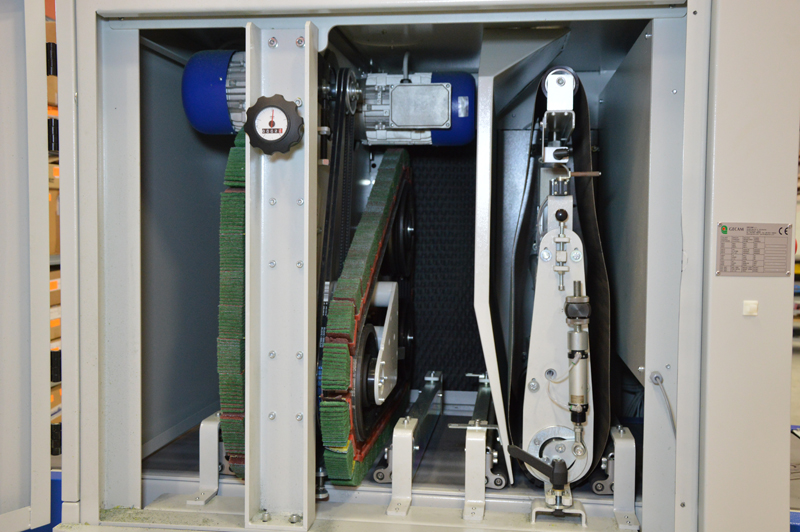

WORKING UNITS

 “R” – ABRASIVE BELT
Gruppo R Abrasive belt with rotation in feeding direction of the workpiece, equipped with pneumatic grinding belt oscillation and belt centering.

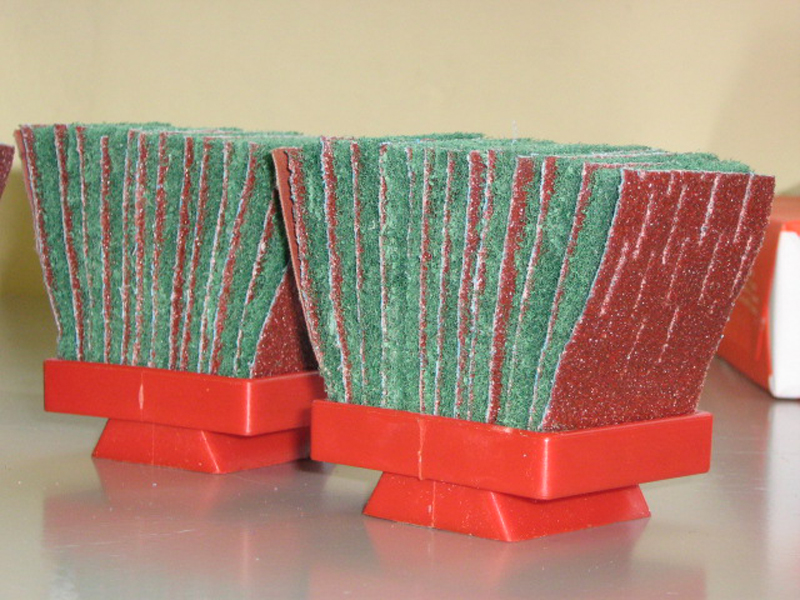

 “C” – BRUSHES WITH STRIPS
gruppo_c Unit equipped with 82 brushes mounted on cross belt, with reverse rotation,with independent motors.

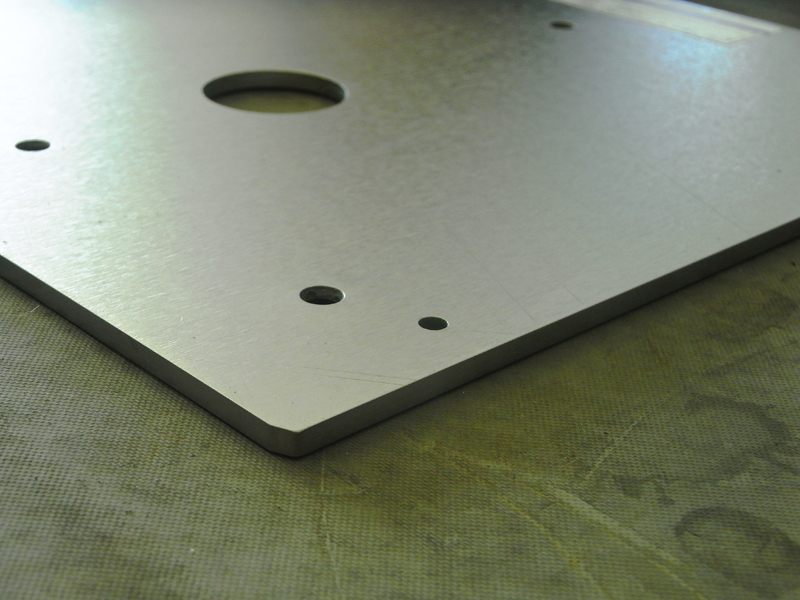

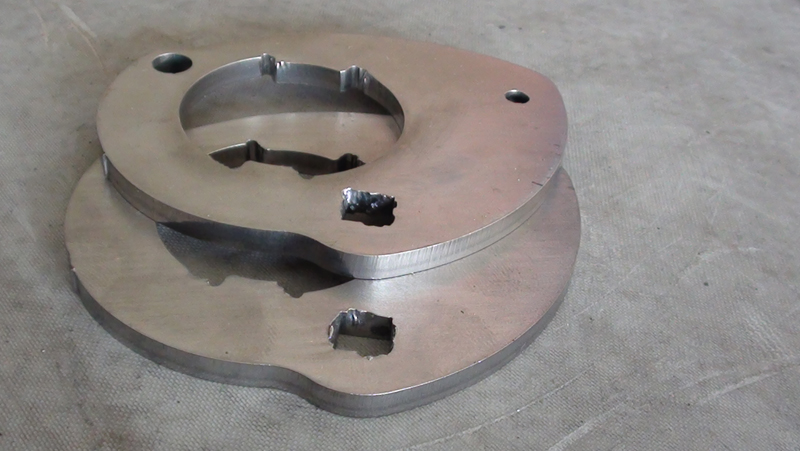

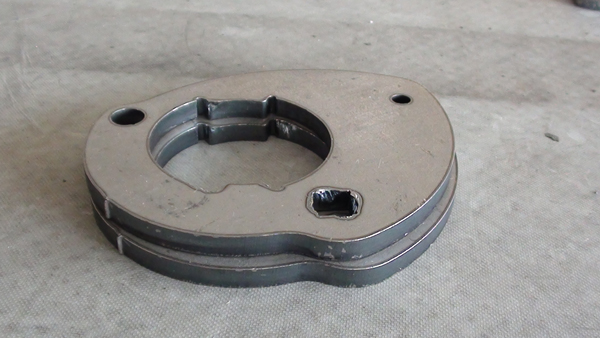

PHOTO GALLERY

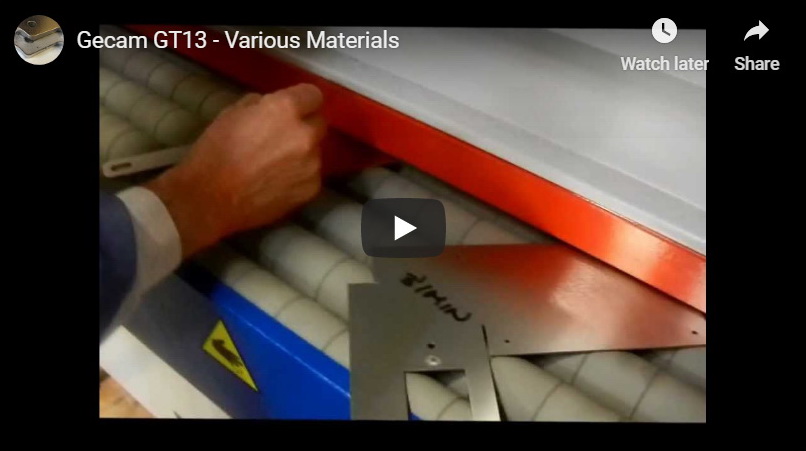

VIDEO GALLERY



 Catalog Download                              Technical Data
